Aayee Double 24VDC 600Kg Swing Gate Opener

24v Dc Double Phase 300kg Automatic Swing Gate Openers For Farm Gates

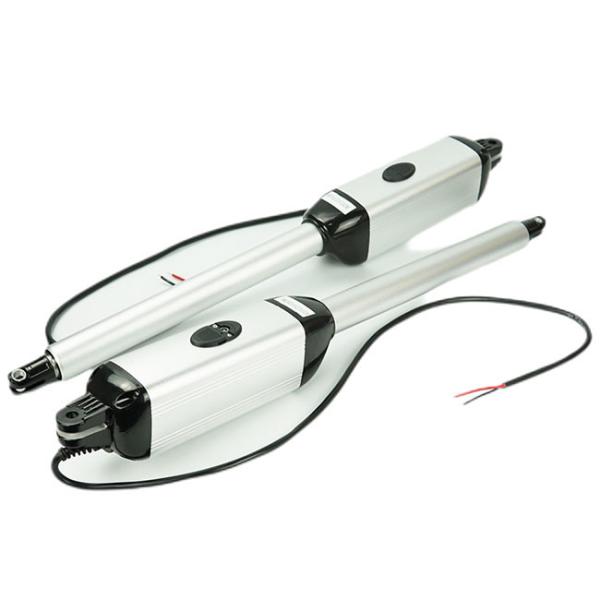

GPK03D features two 40W 24VDC motors with higher efficiency, lower power consumption, and greater safety.

It is designed as the strongest kit for Heavy Duty dual swing gates up to a maximum of 3M long or maximum of weight of 300KG per gate leaf. The extendable and durable die-casting aluminum swing arms bring a superior performance and longer operating life.

Features:

*Soft start and soft stop.

*Emergency release key in case of power failure

*Dual/single gate running mode Adjustable opening/closing interval between master and slave gate

*Stop/reverse in case of obstruction during gate opening/closing

*Built in adjustable auto-close

*Digital display indicates the running situation and setting menu.

*Reliable electromagnetism limit switch for easy adjustment

*Buit in max motor running time(MRT) adjustable for multiple safety protection

*Can be equipment with a wide range of the accessories

swing gate motor ram set,wrought iron gate automatic motor,aluminum swing gate with motor,swing gate motor opener

swing gate actuators china,swing gate actuator,swing machine for home,dc swing gate motor,swing exterior door motor
articulated swing door opener,dual swing gate motor

【Parameters】 - power supply: 110V; motor power: 24VDC 40W*2; current: 5A; motor speed: 320RPM; actuator running speed: 1.6 CM/S; actuator stroke: 300MM; Leaf weight: 300KG; Working temperature: -20C ~55C; Protection class: IP55

【Heavy Duty】- With two low power consumption 24V DC motors, designed for long or double swing doors with a maximum weight of 600kg. Extendable and durable aluminum swing arms per door leaf bring exceptional performance to heavy duty doors. The system has a long service life and minimal maintenance requirements.

【Multiple Applications】- Suitable for all types of double swing doors, typical applications include residential, patio, ranch, farm and ranch.

【Easy to Install】-Easy DIY installation with common tools, no extra soldering, no high voltage electrical connections. Inclu·des complete mounting hardware and easy-to-follow instructions for peace of mind. The entire installation only takes a few hours.

【Safety to use】- Manual release with safety custom key when power is off. Soft start and slow stop. Adjust the opening and closing interval of the double gates, and automatically stop when an obstacle is detected during operation.

GPK03S Automatic Swing Gate Opener features one 40W 24VDC motor with higher efficiency, lower power consumption, and greater safety.

GPK03S could realize single-leaf independent opening and closing doors at the same time, and are generally used in courtyards, villas, garages, etc. The material of the door can be iron art, aluminum art, solid wood, etc., as long as it does not exceed the bearing range.

Swing Door Opener GPK03D Kit

Swing door opener GPK03D packed in carton

Carton size: 88*23*20cm

Shipping weight is 22 kg

FAQ

Q1: What is the Warranty for swing gate opener ?

A1:we have 1 year warranty time ,If any quality problems on our side occured in this period ,we will take resposible for it.

Q2:What is connponents of 1 set swing gate opener ?

A2:Each Kit swing gate opener inclduing 2motors , 1 control panel , 2 remote controls, 1 user book , 1 set hardward accessories for installation .

Q3:What is the securiy device for swing gate opener ?

A3: Our control panel have terminals for infrared sensor ,flashing light , it can avoid some unnecessary accident.

Q4: How about the OEM?

A4: We can put costomers' information and logo on the products.

Q5: What is package size, weight ?

A5: Package size: 88cm*23cm*20cm . Gross Weight : 23KG

Q6: What is the Volatage input ?

A6: Volatage range : 110V-240V

Q7:Is there any quick release device for power failure?

A7:Our system have clutches device , when the power failure ,just use a Allen key to release the clutch , and push the door open or close by hand

Q8:Is there cheap shipping cost to import to our country?

A8: For small order,express will be best. test 2 sets the ship cost will be competitive .

For bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
