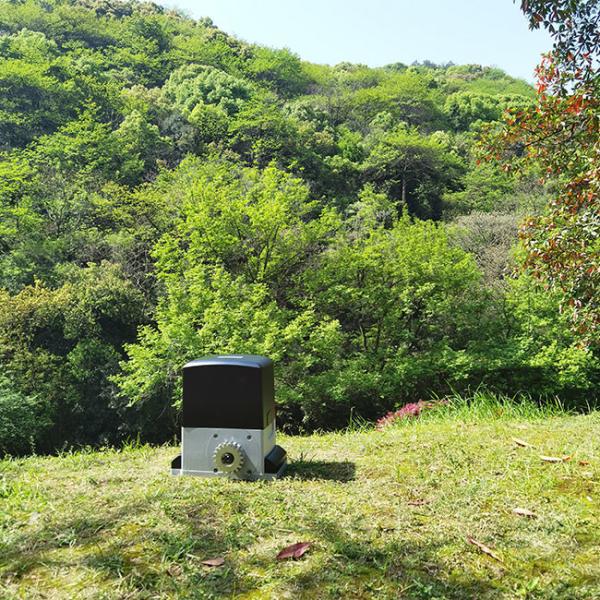

Hot Sale Factory Direct Automatic Door Automated Sliding Ac Gate
Motor Motors With 100% Safety
We are leading manufacture and trading company in electronica
industry for more than 10 years also have a professional R&D
team.With years of export experience along with excellent quality,
advanced services and competitive prices, Gatech has won numerous
customers' trust and support. Welome to inquire samples for
testing,you could place your order after you testing.Our product
range includes: sliding gate operator, swing gate opener, rolling
shutter motor,automatic boom barrier and access control equipment
such as: remote control, receiver, flash lamp,gear rack,control
panel, photocell, wifi controller.
The 2500 kg all-in-one machine is built-in circuit board, the
overall installation is more convenient, the maximum load is less
than 2000 kg, and the price is affordable and cost-effective.
electric gate motors,sliding gate motor 2000kg,for electric gate
motor price
| Product Name | Heavy duty
sliding gate motor |
| Description | G20AC |
| Power supply | 220V+10% 50HZ |
| Power of motor | 500W |
| Motor speed | 1400r/min |
| Max weight of gate | <2500Kg |
| Motor thermal protection | 130℃ |
| Environment temperature range | -20℃ 55℃ |
high power sliding door opener industry gate operator oil hwavy
industrial,high power sliding door opener industry gate operator
high power sliding door opengate motor sliding gate opener,electric gate opener motor,automatic
gate motor,sliding gate motor,sliding gate operatorer industry gate operator oil,sliding rolling gate opener,sliding
door opener industry gate operator,large power sliding gate opener
price,sliding automatic gate opener,for automatic sliding swing
gate openers operators
Packaging Details: Standard Exporting Packing
Measurement of carton box: 34*28*42 cm
Weight : 20KG
Installation Tips
* Before using the machine,check power
supply,grounding,voltage,etc.
* Check whether it is connected according to the demand of wiring
diagram.
* The gate should be pulled easily and smoothly manually when the
worm
gears are released.
* The worm gears will be coupled before power on.
* The product must be installed by professional person
Selling Points
1) Suitable for residential or commercial sliding doors.
2) Remote control or button full open or pedestrian open.
3) Built-in solar regulator and auto-off function.
4) The door automatically stops and reopens when it encounters an
obstacle.
5) Manually release the clutch in case of emergency or power
failure.
6) Terminals for battery, photocell, flash, solar panel, button,
WIFI APP controller.
7) DIY simple installation. Soft start and slow down gently to
stop.
8) 1 year warranty. WIFI APP function can be added.
FAQ:
Communication with customers:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
