Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated

    Buy cheap Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated from wholesalers

    Buy cheap Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated from wholesalers
    • Buy cheap Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated from wholesalers
    • Buy cheap Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated from wholesalers

    Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated

    Ask Lasest Price
    Brand Name : GATECH
    Model Number : G15F
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 2000 sets per month
    • Product Details
    • Company Profile

    Automatic Heavy Duty Fast Sliding Gate Opener Powder Coated

    Fast Ac 110v 1500kg Heavy Duty High Speed Sliding Door Operators Industrial Use


    Our sliding gate operators are manufactured to our specifications from years of experience and research - stylish designs, but above all quality parts. We are so confident in the quality of our products that we offer a 1-2 year replacement guarantee depending on the product. We come with tons of accessories to make your gate just the way you like it. From keyboards to security sensors to solar power and more. We also stock all the hardware components needed to automate gates.


    Fast Heavy duty sliding gate motors G15F Industrial Use

    Power Supply110V +/- 10%, 60Hz- Single Phase
    Power of motor550W
    Output Pinion19 Tooth Mod 4
    Operating Speed24m/min
    Motor CoolingDirect Drive Fan (1400RPM)
    Ambient Temperature RangeFrom-37'F (-35°C) to 149.F (+65'C)
    Motor Thermal ProtectionElectronic
    Maximum Gate length20m
    IPRating44
    Shipping Mass of Unit17 kgs(- 37 Ibs)
    Maximum Gate Mass1000 kgs ~ 1500 kgs ( 2025 lbs ~ 3307 lbs)

    By GATECH technology, only two cables can power and control up to one pair of photocells in the Moonbus series.


    The kit includes:

    1 non-reversible electromechanical gear motor with integrated control unit and electromechanical limit switches.

    2 transmitters 433.92MHz, 4 channels.

    1 pair of external photocells designed by GATECH for connection

    1 flash lamp

    External receiver with 400pcs transmitters or 800pcs transmitters for your optional


    Fast sliding gate motors advance:

    24M/min, it is very fast compare with other gate motors by diffferent opinion and gear motors.

    More safe

    Quick

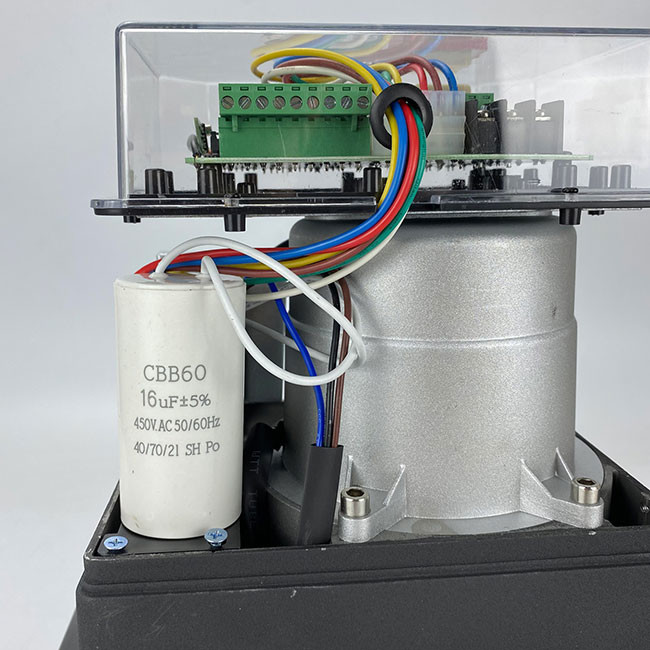

    PCB for sliding gate door operators


    Automatic Heavy Duty Fast Sliding Gate Opener Powder CoatedAutomatic Heavy Duty Fast Sliding Gate Opener Powder Coated


    The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality


    FAQ


    What is the input voltage for this gate motors ?

    110V input voltage.


    What is the Max weight of gate?

    Max weight supporting is 1500kgs.


    How many models do you have for sliding gate openers ?

    G6,G8,G15,G20,G30


    What is the frequncy of your remote control for this sliding gate motors?

    Remote control models are 433Hz.


    What is the longest remote control distance in meters?

    Long range distance reach 100m.


    How many gate motors can be controlled by a remote control?

    4 gate motors for a remote control.


    Is there a requirement for the MOQ?

    One unit is available,but it is sample cost. For large quantity,Please negotiable with us.


    What kind of payments do you support?

    Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.


    What is your warranty terms?

    2 year warranty


    How long is your delivery time?

    For standard products, 10-25 days are available.
