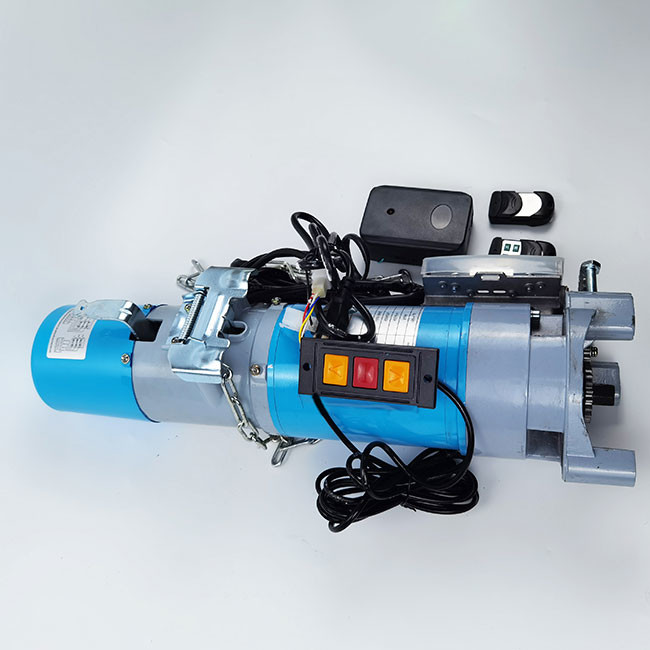

Smart Garage Door 600kg DC Electric Roller Shutter Motors Home Use
Supporting garage door up to 600kg in 220V version
Built-in 433 MHZ and electromechanical limit switch;
Packed in 2 transmitters with 50m long range
100% copper wire inside the motor.
| Model | Rated voltage (V/Hz) | Max lifiting force (kg.f) | Rated output torque (N.m) | Rated output speed (r/min) | Motor power (w) | Max lifiting height (m) | Standard Barrel Dim(inch) |
| DC600 | 220/50 | 600 | 412 | 5.3 | 240 | 6 | 4'' |
| DC800 | 220/50 | 800 | 550 | 5.3 | 400 | 9 | 5'' |
| DC1000 | 220/50 | 1000 | 550 | 5.3 | 550 | 9 | 6'' |
Installation tips:
1. When there is a thunderstorm, try to disconnect the external
power supply;
2. When using the rolling shutter door operator, the operator shall
not leave the site. If any abnormality is found, the power supply
should be cut off immediately, and the fault should be eliminated
by re-use.
3. When the power goes out, pull up the door curtain with the
handle. It is strictly forbidden to exceed the set height, so as
not to damage the limit switch and cause the top height; to close
the door curtain, you can gently pull the manual lever to make the
door curtain descend at a uniform speed. When the door curtain is
about to be fully closed, the lever should be released, and then
pulled to make it fully closed to prevent damage to the limit
switch;
our set is packed into two cartons with foam inside;
carton 1: motor and remote
carton 2: brackets and other accessories
FAQ
What is your MOQ?
One unit is available,but it is sample cost. For large
quantity,Please negotiable with us.
What is your payment term?
For sample ,T/T in advance.For customize order,35% T/T in
advance,balance before shipping.
How long is your product warranty?
Two years when you got goods.
What is the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
