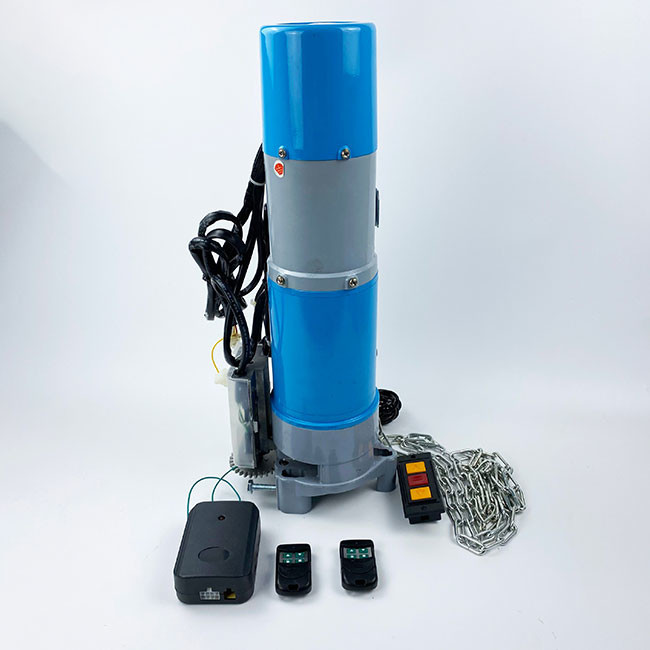

Ac 220v Single 300kg Copper Garage Roller Shutter Motors Home Use
Gatech roller shutter motor has been continuously exported for over
ten years and is our best selling product.This rolling shutter
motor is easy to install and has proven to be a reliable accessory
in a variety of application. Such as buildings, garages, shopping
malls, factory, warehouses, docks, airports, etc.It has the
following advantages:
1. Optional: copper or aluminum AC electric rolling door motor;
2. Beautiful appearance,advanced structure,strong horsepower;
3. Low noise, small vibration, low power consumption;
4. A motor overheating protection device(140℃);
5. Imported electrical components, security and stability;
6. Lightweight, small size, easy installation, long life and
reliable performance;
7. Easy manual operation when power could also be equipped with
electrical storage devices;
8. Assembly could be equipped with remote control, to achieve
long-range operation.
| Model | Rated output torque (N.m) | Rated output speed (r/min) | Motor power (w) | Rated voltage (V/Hz) | Rated current (A) | Continuos working time(min) | Durm dube outer diameter (mm) | Max lifting force (kg.f) | Max lifting height (m) |
| AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 |
| AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 |
| AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 |
| AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 |
| AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 |
1) Relative humidity: 90% (25°C)
2) Short hour working system, continuous operation not exceeding 5
minutes with one phase and 10 minutes with three phases
3) Stylish, advanced structure and strong power
4) Imported electronic parts
5) Safe and stable
6) Little vibration and small power consumption
Terms of Payment:T/T ,Paypal.Western Union,ect.
Delivery time : 15-35 days after receipt of deposit.
OEM for customs is available.
Sample order available, the customers will pay the sample fee and
freight cost firstly and that charge will be refunded in the
following bulk order.
Any inquiry or question will be reply in 24 hours during working
days.
