    220v Fast Sliding Gate Opener Galvanized

    Ask Lasest Price
    Brand Name : GATECH
    Model Number : G20F
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 2000 sets per month
    • Product Details
    • Company Profile

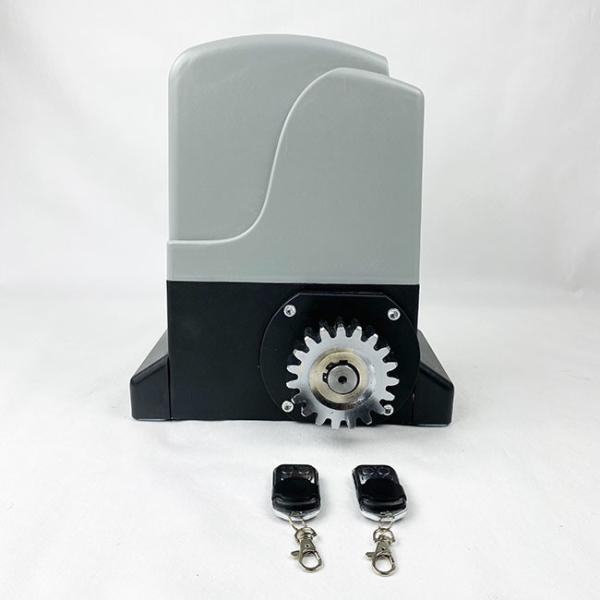

    220v Fast Sliding Gate Opener Galvanized

    Fast Ac 220v Single Phase 2000kg Fast Sliding Gate Openers Industrial Use


    Nowadays, from industrial area to residential homes and gardens, thanks to technological improvements, sliding doors systems can be used in a variety of areas as needed. Ac gate motors, DC sliding gate openers, heavy duty gate operators, lightweight door operators and Fast gate heavy duty gate motors are popular in our life. In some location, such as very busy roads, they need much more safe by fast sliding gate motors to keep.


    Fast sliding gate motors G20F Industrial Use

    Power Supply220V +/- 10%, 50Hz- Single Phase
    Power of motor700W
    Output Pinion19 Tooth Mod 4
    Operating Speed24m/min
    Motor CoolingDirect Drive Fan (1400RPM)
    Ambient Temperature RangeFrom-37'F (-35°C) to 149.F (+65'C)
    Motor Thermal ProtectionElectronic
    Maximum Gate length20m
    IPRating44
    Shipping Mass of Unit17.5 kgs(- 39 Ibs)
    Maximum Gate Mass1500 kgs ~ 2000 kgs (3308 lbs ~ 3969 lbs)

    GATECH offers classic sliding door drives with safe motor voltages of 230 volts or 380 volts three-phase AC current with frequency converter. These are superior quality drive systems because GATECH stands for quality from China.


    Painted aluminum housing;

    Accurate and safe operation with rolling encoders;

    Obstacle detection with soft start and stop;

    Magnetic limit switches, accurate and reliable at all times

    operators provide sliding door motors up to 1500kg-2000kg

    G15 automatic sliding gate operator is equipped with a built-in control panel;

    Built-in 433 MHZ and electromechanical or magnetic limit switch;


    Sliding gate opners kits


    220v Fast Sliding Gate Opener Galvanized220v Fast Sliding Gate Opener Galvanized


    The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality


    FAQ


    What is the input voltage for this gate motors ?

    220V input voltage.


    What is the Max weight of gate?

    Max weight supporting is 2000kgs.


    How many models do you have for sliding gate openers ?

    G6,G8,G15,G20,G30


    What is the frequncy of your remote control for this sliding gate motors?

    Remote control models are 433Hz.


    What is the longest remote control distance in meters?

    Long range distance reach 100m.


    How many gate motors can be controlled by a remote control?

    4 gate motors for a remote control.


    Is there a requirement for the MOQ?

    One unit is available,but it is sample cost. For large quantity,Please negotiable with us.


    What kind of payments do you support?

    Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.


    What is your warranty terms?

    2 year warranty


    How long is your delivery time?

    For standard products, 10-25 days are available.
