Heavy Duty AC 2000kg Fast Sliding Door Operators Industrial Use
The ultra-fast sliding door motor travel ensures your door will
open and close faster than other motors on the market. This is
especially useful for properties that are located on busy roads or
need added security to quickly close the gates. This sliding door
motor can move up to 24m/min.
Every single item in our wide range of products is made of aluminum
and stainless steel, without exception.
Additionally, all drive units can be powder-coated to match the
gate color, thus becoming part of the overall gate design
High Speed Heavy Duty Sliding Gate Motors G20F Industrial Use |
| Power Supply | 220V +/- 10%, 50Hz- Single Phase |
| Power of motor | 700W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 24m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unit | 17.5 kgs(~ 37 Ibs) |
| Maximum Gate Mass | 1500 kgs ~ 2000 kgs (3308 lbs ~ 4410 lbs) |
| Limit Switch Type | Magnet or Spring limit |
| Without Electricity | Manual, Key Usage |
| Warranty Perriod | 24months |
| Extented Warranty | Available |
The control box with transparent cover away for ants or other small
pests to protect the cable in good condition, especially in Summer
season.
Galvanized rack is antirust for 10 years in garden or fence. You
are assured that no need change this parts always.
Supports beam input for additional safety features;
The limit switch adopts heavy-duty micro switch, and the
positioning is reliable and accurate.
Superior quality with premium materials.
Remote frequency: 433.92 Mhz
Remote Code: Roll Code.
Maximum number of remotes 30pcs
Four-channel multi-function remote control
The maximum gate width is 20 meters
Powerful oil-immersed reducer
Copper worm and aluminum body

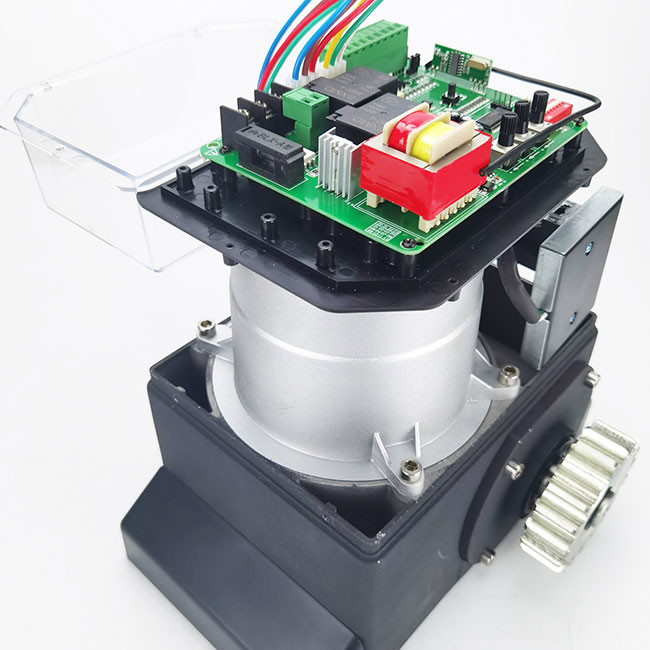

PCB for sliding gate openers
The gearbox is lubricated, and the coded remote control allows
transmission of 30 to 50 meters. This sliding control panel
supports photocell input to provide additional safety features, and
limit switches can achieve reliable and accurate positioning. The
shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
220V input voltage.
What is the Max weight of gate?
Max weight supporting is 2000kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20F,G30
What is the frequncy of your remote control for this sliding gate
motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large
quantity,Please negotiable with us.
What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30%
T/T in advance ,balance against of copy of B/L.If you have another
questions, pls feel free to contact us.
What is your warranty terms?
2 year warranty
How long is your delivery time?
For standard products, 10-25 days are available.
