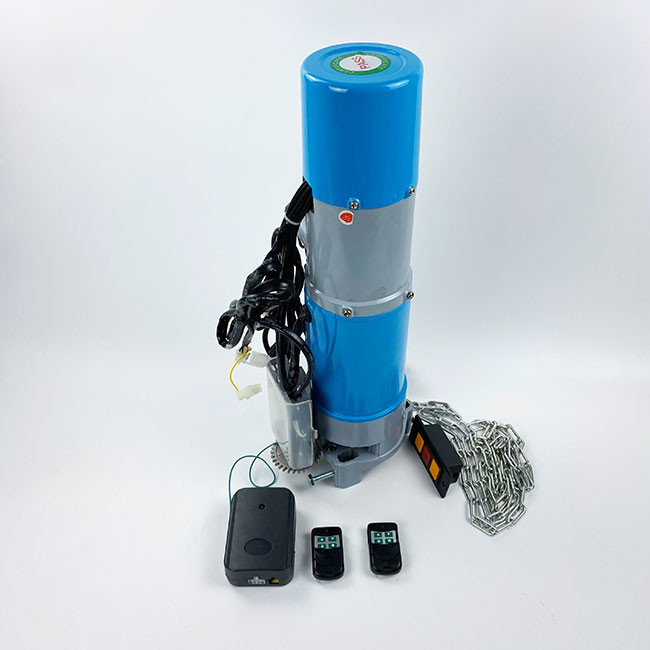

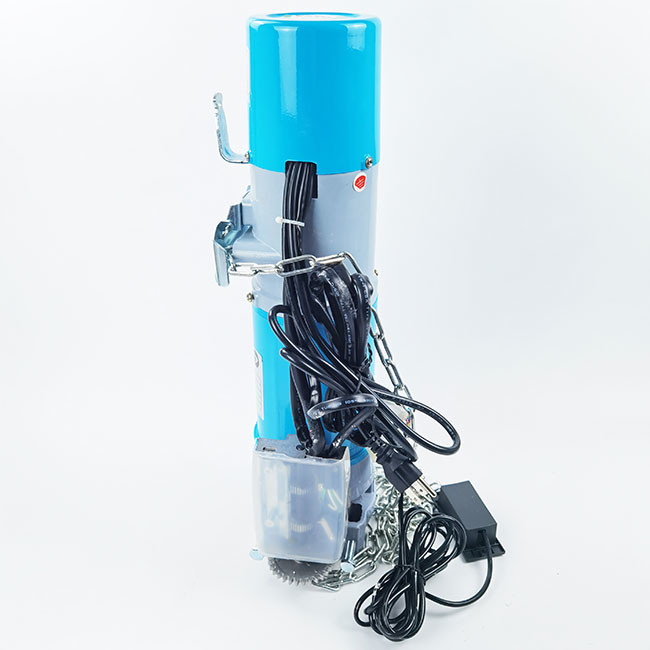

Remote 300kg Copper Garage Roller Shutter Motors Home Use
GATECH roller shutter motor has been continuously exported for over
ten years and is our best selling product, it uses the most
advanced production technology and the latest technology available
to provide reliability with multiple functions. Known for its
quality, this product is easy to install and has proven to be a
reliable accessory in a variety of applications. Such as buildings,
garages, shopping malls, factories, warehouses, docks, airports,
etc.Our rolling door motor has its excellent quality.
1. Optional: copper or aluminum AC electric rolling door motor;
2. Beautiful appearance,advanced structure,strong horsepower;
3. Low noise, small vibration, low power consumption;
4. A motor overheating protection device(140℃);
5. Imported electrical components, security and stability;
6. Lightweight, small size, easy installation, long life and
reliable performance;
7. Easy manual operation when power could also be equipped with
electrical storage devices;
8. Assembly could be equipped with remote control, to achieve
long-range operation.
| Model | Rated output torque (N.m) | Rated output speed (r/min) | Motor power (w) | Rated voltage (V/Hz) | Rated current (A) | Continuos working time(min) | Durm dube outer diameter (mm) | Max lifting force (kg.f) | Max lifting height (m) |
| AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 |
| AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 |
| AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 |
| AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 |
| AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 |
Why choose us?
We take the “Quality Is Life” as production standard and principle,
executing complete quality assurance system involving the whole
process from R&D to manufacture, so our products have enjoyed a
repectable reputation for high quality and low failure rate among
our customers.
Sometimes, what they need is very simple–reliable quality,
reasonable price, on-time delivery and good service,these are what
we can afford.
Product Packing
One set in two cartons, plastic bag inside, carton outside
( The outside cartons could be customized according to customers'
requirement, like printing logo or words on it or according to your
own design to print it.)
A 20 GP container could hold about 520-550 PCS AC motor, if DC
motors, 480-520 PCS is available.
Our Service
Terms of Payment: T/T,L/C,MoneyGram,PayPal,Western Union;
1. By express:DHL.UPS.TNT.EMS.etc.
2.Air or Sea Freight: Goods will be delivered by air or sea
according to customer's request.
3.Agent designated by client:Please send the contact details of
your shipping agent and we will arrange the delivery.
4.Delivery time: We will deliver the goods in 15-35days after we
receive your deposit, which accord to the exact quantity.
