Ac 110v 800kg Automatic Sliding Driveway Gate Openers Home Use
Sliding gate open left and right instead of swinging. Capable of
fitting into a small area compared to swings, it's popular because
when open, doors can be hidden by sliding them against surrounding
structures or supports, making it more aesthetically pleasing to
some people attractive. It also requires a smaller operating area.
The two main modes of operation of a sliding gate are primarily a
track with wheels or rollers at the bottom of the gate to make it
slide or a cantilevered operating mechanism located at both ends of
the gate to allow it to meet the middle without support.
GATECH operators provide sliding door motors up to 800kg in 220V
and 110V versions.G8 automatic sliding gate operator is equipped
with a built-in control panel, built-in 433 MHZ and
electromechanical or magnetic limit switch.Reliability and safety
features enable the operator to maintain excellent quality.
G8 Home Use |
| Power Supply | 110V +/- 10%, 60Hz- Single Phase |
| Power of motor | 370W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IPRating | 44 |
| Shipping Mass of Unit | 15 kgs(- 32 Ibs) |
| Maximum Gate Mass | 800 kgs (~ 1764 lbs) |
GATECH operators provide sliding door motors up to 800kg in 220V and 110V versions.
G8 automatic sliding gate operator is equipped with a built-in
control panel, built-in 433 MHZ and electromechanical or magnetic
limit switch.
Reliability and safety features enable the operator to maintain
excellent quality.
G8 series is light duty gate motors and support standard sliding
gate with 800kg in weight.Galvanized steel gear rack is one of the
necessary for this gate motor to work.

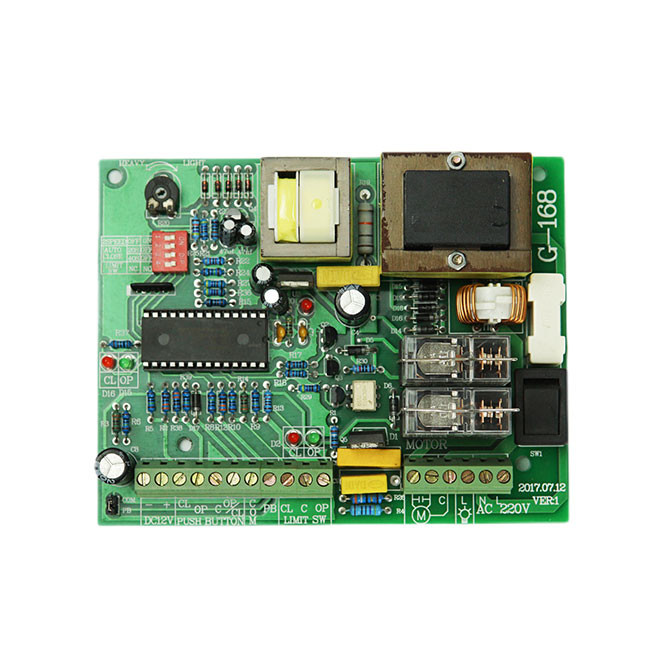

Built-in Control panel for 110V 800kg slide gate motors
The gearbox is lubricated, and the coded remote control allows
transmission of 30 to 50 meters. This sliding control panel
supports photocell input to provide additional safety features, and
limit switches can achieve reliable and accurate positioning. The
shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
110V input voltage.
What is the Max weight of gate?
Max weight supporting is 800kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate
motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Is there a requirement for the MOQ?
One unit is available,but it is sample cost. For large
quantity,Please negotiable with us.
What kind of payments do you support?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30%
T/T in advance ,balance against of copy of B/L.If you have another
questions, pls feel free to contact us.
What is your warranty terms?
2 year warranty
How long is your delivery time?
For standard products, 10-25 days are available.
