1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing

    Buy cheap 1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing from wholesalers

    Buy cheap 1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing from wholesalers
    • Buy cheap 1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing from wholesalers
    • Buy cheap 1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing from wholesalers
    • Buy cheap 1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing from wholesalers

    1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing

    Ask Lasest Price
    Brand Name : GATECH
    Model Number : G15
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 2000 sets per month
    • Product Details
    • Company Profile

    1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing

    Heavy Duty AC 1500kg sliding Door Motors Commercial Use


    Sliding doors are a mix of quality and class. While there are many types of automated gates, this particular type uses rack and pinion technology, where the rack is moved by a pinion motor by sliding the gate on rails made of steel.


    Our exclusive anti-crushing dual clutch system creates a safe and responsive automatic door. There is also an electronic obstacle detection unit that ensures that the gates are reversed or stopped as soon as an obstacle is detected.


    G15 Commercial Use

    Power Supply220V +/- 10%, 50Hz- Single Phase
    Power of motor550W

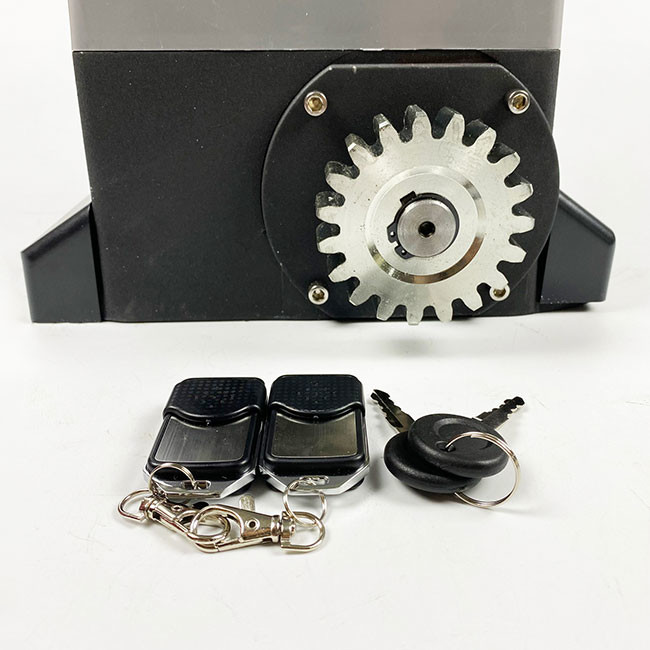

    Output Pinion19 Tooth Mod 4
    Operating Speed12m/min
    Motor CoolingDirect Drive Fan (1400RPM)
    Ambient Temperature RangeFrom-37'F (-35°C) to 149.F (+65'C)
    Motor Thermal ProtectionElectronic
    Maximum Gate length20m
    IPRating44
    Shipping Mass of Unit17 kgs(~ 37 Ibs)
    Maximum Gate Mass1000 kgs ~ 1500 kgs (2025 lbs~ 3307 lbs)

    Advanced Features

    Auto-reverse on closing if it hits an obstacle

    Stopping on opening if it hits an obstacle

    Control to stop immediately at any time when the gate is moving

    Limit switch N.C/N.O selectable (using micro-switch)

    LED indications for easy installation and fault diagnosis

    Photocell Electric beam control input available

    Adjustable forcing sensing trimmer


    Details for electric slide door operators


    1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing

    The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality


    FAQ


    What is the input voltage for this gate motors ?

    220V input voltage.


    What is the Max weight of gate?

    Max weight supporting is 1500kgs.


    How many models do you have for sliding gate openers ?

    G6,G8,G15,G20,G30


    What is the frequncy of your remote control for this sliding gate motors?

    Remote control models are 433Hz.


    What is the longest remote control distance in meters?

    Long range distance reach 100m.


    How many gate motors can be controlled by a remote control?

    4 gate motors for a remote control.


    Is there a requirement for the MOQ?

    One unit is available,but it is sample cost. For large quantity,Please negotiable with us.


    What kind of payments do you support?

    Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.


    What is your warranty terms?

    2 year warranty


    How long is your delivery time?

    For standard products, 10-25 days are available.
